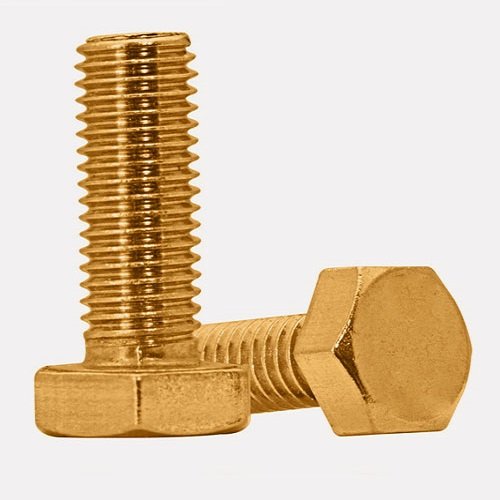

Cupro Nickel 70/30 Bolt
Cupro Nickel 70-30 Hex Head Bolt, Grade 70-30 Eye Bolt, UNS C71500 Flange Head Bolt, 70-30 Copper Nickel U Bolt, ASME SB151 Cu Ni 70-30 Hex Bolt, DIN 2.0882 Allen Bolt, 70/30 Copper Nickel Anchor Bolt, ASTM B151 Cu Ni 70/30 Stud Bolt.
Cupro Nickel 70/30 Bolts are made of copper and nickel. These bolts have chemicals such as chromium, iron, copper, manganese, silicon, carbon, and titanium. These have a high level of thermal stability and a good amount of strength even when exposed to high temperatures. Their composition makes them stronger and more resistant to corrosion. Copper and nickel alloys are resistant to biofouling. Copper-Nickel 70/30 has alpha structures with a single phase as nickel dissolves in copper. Nickel can be found in significant amounts in the cast formations, including in the alpha dendrites that reach from the centres of the structures to their edges.
Their composition makes them stronger and more resistant to corrosion. Copper and nickel alloys are resistant to biofouling. Grade 70-30 Eye Bolt has alpha structures with a single phase as nickel dissolves in copper. Nickel can be found in significant amounts in the cast formations, including in the alpha dendrites that reach from the centres of the structures to their edges.
These are very strong thus making them a great choice for welding. They are used a lot in saltwater industries where there is a chance of abrasion and reduction. When constructing these bolts, the material’s density, modulus of elasticity, tensile strength, yield strength, length, electrical properties, dielectric strength, melting point, impact resistance, and maximum tensile strength are all considered.
About Cupro Nickel 70/30 Bolt
Grade 70-30 Allen Bolt, 70-30 Copper Nickel Anchor Bolt, UNS C71500 Hex Head Bolt, ASTM B151 Cu Ni 70/30 Eye Bolt, ASME SB151 Cu Ni 70-30 Flange Head Bolt, Cupro Nickel 70-30 Hex Bolt, DIN 2.0882 U Bolt.
The nuts and bolts in this set are resistant to alkaline and neutral solutions. ASME SB151 Cu Ni 70-30 Hex Bolt work very well with heat and electricity. There is a chance of galvanic erosion when these are exposed to other metals in an acidic environment.
Due to their operation, they can be employed for a variety of industrial applications. These are very durable, even when used in industries involving high temperatures.
We are known as one of the most reliable producers, manufacturers, and stockists of DIN 2.0882 U Bolt. The raw materials used to make these bolts have been checked, tested, and approved by our experts. Please contact us to get more information about these bolts and their prices.
Cupro Nickel 70/30 Bolt Specification
| Specifications | ASTM B151 / ASME SB151 |
| Standard | DIN, ISO ,JIS ,GB, IS, BS, ASTM and all International Standards |
| Size | M3 - M100 | 3/6″ - 4″ | Custom Sizes |
| Length | 3 mm - 200 mm | Custom Sizes |
| Dimensions | DIN 931, 933, 934, 7991, 976, 125, ASME B18.2.1, B18.3 |
| Threads available | UNF, BSW, BSF, METRIC, UNC, or as required |
| Threads Configuration | ASME B1.1 2A/3A – 2B/3B Inch Unified Threads and B1.13M 6h-6G Metric Coarse Threads |
| Form | Hex, Threading, Square, Round as per Gauge Etc. |
| Head | Hex, Square, Round, Hex flange, Flat, T-head & Triangular etc. |
| Neck type | Hex, Square, Triangular, Oval & Knurled etc. |
| Surface Treatment | Passivation /plain |
| Others Factor | OEM, ODM, ±0.03MM tolerance |
| Manufacturing Process | Wire Drawing, Cold Heading, Insert tapping, Heat Treatment, Surface Plating, Inspection, Packing. |
| Packing | IN BULK: carton, pallet, Small Boxes or customer request |
| Surface Coating | Black Oxide, Cadmium, Galvanized, Teflon, Xylan, Zinc, Others Upon Request |
| Test Certificate | As per EN 10204 / 3.1 Manufacturer Test Certificate, PED 97/23/EC Certified, Merkblatt AD 2000 W2 Certified |
| Certification | Dual Certified As per ASTM & ASME Codes |
| Delivery time | Regular product : 7-15 days, Custom product : 2-4 weeks |
| Place of Origin | India |
Equivalent Grades Cupro Nickel 70/30 Bolt
| STANDARD | UNS | WNR. |
| Copper Nickel 70/30 | C71500 | 2.0882 |
Chemical Composition Cupro Nickel 70/30 Bolt
| Grade | Cu | Mn | Pb | Ni | Fe | Zn |
| Cu-Ni 70-30 | 65.0 min | 1 max | .05 max | 29-33 | 0.4-1.0 | 1 max |
Mechanical Properties Cupro Nickel 70/30 Bolt
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Cupro Nickel 70/30 | 0.323 lb/in3 at 68 F | 2260 F | 50000 psi | 20000 psi | 30 % |
Dimensions Of Cupro Nickel 70/30 Bolt
Cupro Nickel 70/30 Bolts Dimensions Chart :
All dimensions are in mm unless mentioned otherwise
| Nominal Size or Basic Product Diameter | Full-Size Body Diameter, E | Width Across Flats, F | Width Across Corners, G | Head Height, H Basic | Radius of Fillet, R | Nominal Thread Length for Bolt Lengths, LT |
|||||||||
| inch | mm | Max | Min | Basic inch | Max | Min | Max | Min | Basic inch | Max | Min | Max | Min | 6 in. and Shoter | Over 6 in. |
| 1⁄4 | 0.25 | 0.26 | 0.237 | 7⁄16 | 0.438 | 0.425 | 0.505 | 0.484 | 11⁄64 | 0.188 | 0.15 | 0.03 | 0.01 | 0.75 | 1 |
| 5⁄16 | 0.3125 | 0.324 | 0.298 | 1⁄2 | 0.5 | 0.484 | 0.577 | 0.552 | 7⁄32 | 0.235 | 0.195 | 0.03 | 0.01 | 0.875 | 1.125 |
| 3⁄8 | 0.375 | 0.388 | 0.36 | 9⁄16 | 0.562 | 0.544 | 0.65 | 0.62 | 1⁄4 | 0.268 | 0.226 | 0.03 | 0.01 | 1 | 1.25 |
| 7⁄16 | 0.4375 | 0.452 | 0.421 | 5⁄8 | 0.625 | 0.603 | 0.722 | 0.687 | 19⁄64 | 0.316 | 0.272 | 0.03 | 0.01 | 1.125 | 1.375 |
| 1⁄2 | 0.5 | 0.515 | 0.482 | 3⁄4 | 0.75 | 0.725 | 0.866 | 0.826 | 11⁄32 | 0.364 | 0.302 | 0.03 | 0.01 | 1.25 | 1.5 |
| 5⁄8 | 0.625 | 0.642 | 0.605 | 15⁄16 | 0.938 | 0.906 | 1.083 | 1.033 | 27⁄64 | 0.444 | 0.378 | 0.06 | 0.02 | 1.5 | 1.75 |
| 3⁄4 | 0.75 | 0.768 | 0.729 | 11⁄8 | 1.125 | 1.088 | 1.299 | 1.24 | 1⁄2 | 0.524 | 0.455 | 0.06 | 0.02 | 1.75 | 2 |
| 7⁄8 | 0.875 | 0.895 | 0.852 | 1 5⁄16 | 1.312 | 1.269 | 1.516 | 1.447 | 37⁄64 | 0.604 | 0.531 | 0.06 | 0.02 | 2 | 2.25 |
| 1 | 1 | 1.022 | 0.976 | 1 1⁄2 | 1.5 | 1.45 | 1.732 | 1.653 | 43⁄64 | 0.7 | 0.591 | 0.09 | 0.03 | 2.25 | 2.5 |
| 1 1⁄8 | 1.125 | 1.149 | 1.098 | 1 11⁄16 | 1.688 | 1.631 | 1.949 | 1.859 | 3⁄4 | 0.78 | 0.658 | 0.09 | 0.03 | 2.5 | 2.75 |
| 1 1⁄4 | 1.25 | 1.277 | 1.223 | 1 7⁄8 | 1.875 | 1.812 | 2.165 | 2.066 | 27⁄32 | 0.876 | 0.749 | 0.09 | 0.03 | 2.75 | 3 |
| 1 3⁄8 | 1.375 | 1.404 | 1.345 | 2 1⁄16 | 2.062 | 1.994 | 2.382 | 2.273 | 29⁄32 | 0.94 | 0.81 | 0.09 | 0.03 | 3 | 3.25 |
| 1 1⁄2 | 1.5 | 1.531 | 1.47 | 2 1⁄4 | 2.25 | 2.175 | 2.598 | 2.48 | 1 | 1.036 | 0.902 | 0.09 | 0.03 | 3.25 | 3.5 |
| 1 5⁄8 | 1.625 | 1.658 | 1.591 | 2 7⁄16 | 2.438 | 2.356 | 2.815 | 2.616 | 1 3⁄32 | 1.116 | 0.978 | 0.09 | 0.03 | 3.5 | 3.75 |
| 1 3⁄4 | 1.75 | 1.785 | 1.716 | 2 5⁄8 | 2.625 | 2.538 | 3.031 | 2.893 | 1 5⁄32 | 1.196 | 1.054 | 0.12 | 0.04 | 3.75 | 4 |
| 1 7⁄8 | 1.875 | 1.912 | 1.839 | 2 13⁄16 | 2.812 | 2.719 | 3.248 | 3.099 | 1 1⁄4 | 1.276 | 1.13 | 0.12 | 0.04 | 4 | 4.25 |
| 2 | 2 | 2.039 | 1.964 | 3 | 3 | 2.9 | 3.464 | 3.306 | 1 11⁄32 | 1.388 | 1.175 | 0.12 | 0.04 | 4.25 | 4.5 |
| 2 1⁄4 | 2.25 | 2.305 | 2.214 | 3 3⁄8 | 3.375 | 3.262 | 3.897 | 3.719 | 1 1⁄2 | 1.548 | 1.327 | 0.19 | 0.06 | 4.75 | 5 |
| 2 1⁄2 | 2.5 | 2.559 | 2.461 | 3 3⁄4 | 3.75 | 3.625 | 4.33 | 4.133 | 1 21⁄32 | 1.708 | 1.479 | 0.19 | 0.06 | 5.25 | 5.5 |
| 2 3⁄4 | 2.75 | 2.827 | 2.711 | 4 1⁄8 | 4.125 | 3.988 | 4.763 | 4.546 | 1 13⁄16 | 1.869 | 1.632 | 0.19 | 0.06 | 5.75 | 6 |
| 3 | 3 | 3.081 | 2.961 | 4 1⁄2 | 4.5 | 4.35 | 5.196 | 4.959 | 2 | 2.06 | 1.815 | 0.19 | 0.06 | 6.25 | 6.5 |
| 3 1⁄4 | 3.25 | 3.335 | 3.21 | 4 7⁄8 | 4.875 | 4.712 | 5.629 | 5.372 | 2 3⁄16 | 2.251 | 1.936 | 0.19 | 0.06 | 6.75 | 7 |
| 3 1⁄2 | 3.5 | 3.589 | 3.461 | 5 1⁄4 | 5.25 | 5.075 | 6.062 | 5.786 | 2 5⁄16 | 2.38 | 2.057 | 0.19 | 0.06 | 7.25 | 7.5 |
| 3 3⁄4 | 3.75 | 3.858 | 3.726 | 5 5⁄8 | 5.625 | 5.437 | 6.495 | 6.198 | 2 1⁄2 | 2.572 | 2.241 | 0.19 | 0.06 | 7.75 | 8 |
| 4 | 4 | 4.111 | 3.975 | 6 | 6 | 5.8 | 6.928 | 6.612 | 2 11⁄16 | 2.764 | 2.424 | 0.19 | 0.06 | 8.25 | 8.5 |
Different Types Of Cupro Nickel 70/30 Bolt
Different Types Of Bolts:
ASTM B151 Cupro Nickel 70/30 Hex Bolts
DIN 2.0882 Carriage Bolts
Cupro Nickel 70/30 Stud Bolts
70/30 Cupro Nickel Hex Head Bolts
Cupro Nickel 70/30 Forged Hook Bolts
70/30 Cupro Nickel Torx Bolts
Cu-Ni 70-30 Countersunk Bolts
Cupro Nickel 70/30 Flange Head Bolts
Cu-Ni 70-30 Allen Bolts
C71500 UNS 12-Point Flange Bolts
ASTM B151 UNS C71500 Eye Bolts
Cupro Nickel 70/30 Bolts
AISI Cu-Ni 70-30 U Bolts
Cupro Nickel 70/30 J Bolts
70/30 Cupro Nickel Elevator Bolt
ASTM B151 Cu-Ni 70-30 Threaded Expansion Anchor Bolt
ASME SB 151 High Performance Anchor Bolts
UNS C71500 Lag Bolts
Application of Cupro Nickel 70/30 Bolt
Testing of Cupro Nickel 70/30 Bolt
Packing Of Cupro Nickel 70/30 Bolt
Destination Of Cupro Nickel 70/30 Bolt
