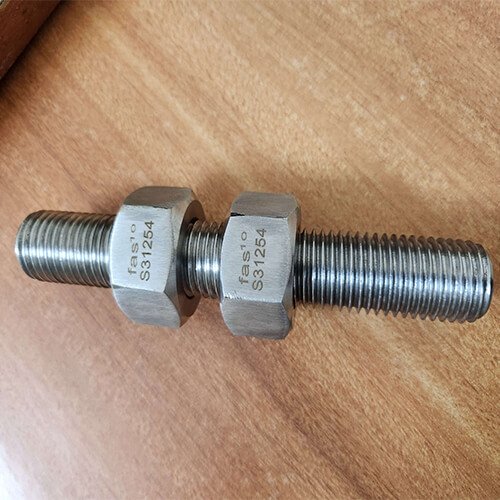

Stainless Steel SMO 254 Stud Bolt

UNS S31254 Double End Threaded Rod, ASTM A479 SMO 254 Full Threaded Stud Bolt, Din 1.4547 Half Threaded Stud Bolt, UNS S31254 Double End Stud Bolt, SMO 254 Half Threaded Rod.

fas10 is a well-known supplier and manufacturer of SMO 254 Stud Bolts, which are weldable in various environments. Seawater handling equipment, chemical processing equipment, bleach facilities for pulp mills, desalination machinery, food processing facilities, and other types of industrial equipment all use SMO 254 bolts. Stud bolts made of alloy 254 have exceptional corrosion resistance, strong toughness, corrosion cracking, and resistance to corrosion that is resistant to pitting caused by seawater.

Although Din 1.4547 Half Threaded Stud Bolt has good weldability and can be welded using procedures comparable to those used for welding typical austenitic steels, they are slightly more prone to hot cracking. They require a lower heat input when they are welded. Stud bolts made of UNS S31254 cannot come into abrasive contact with copper or brass items since this would lead to the formation of cracks in the grain boundaries of the stud bolts.

industrial

About Stainless Steel SMO 254 Stud Bolt

ASME SA479 SMO 254 Tap End Threaded Rod, Din 1.4547 Tap End Stud Bolt, SMO 254 Full Threaded Rod, SMO 254 Flange Stud Bolt, UNS S31254 Double End Stud Bolt With Reduced Shank, SMO 254 Bonding Stud Bolt.

Stud bolts with a DIN 1.4547 thread size are frequently used in the manufacturing of urea and conditions with a high concentration of halides, organic and fatty acids, and other similar chemicals and utilized for manufacturing process equipment. It is not a simple task to mill Grade 254 SMO Bonding Stud Bolt; they are far more difficult to machine than “regular” austenitic stainless. Steels such as type 304 and 316, among others. Stud bolts of grade SMO 254 are not allowed to undergo pre-heating during production, and if they are produced correctly, they are not required to undergo any additional heat treatment. The chemicals, dehydration, food service, flue gas dehydrogenation, pharmaceutical, and pulp and paper sectors are some of the many that use alloy S31254 stud bolts.

ANSI B 1.13M 6g SMO 254 Reduced Shank Stud Bolt, SMO 254 Industrial Stud Bolt, UNS S31254 Metric Thread Stud Bolt Suppliers, Werkstoff No. 1.49 STMOS Parts 1.49 STMOS 254 Studs Bolt, SMO 254 All Thread Stud Bolt are some of the several types of stud bolts that are available.

Stainless Steel SMO 254 Stud Bolt Specification

SpecificationsASTM A 193 / ASME SA 193
StandardDIN, ISO ,JIS ,GB, IS, BS, ASTM and all International Standards
SizeM3 - M100 | 3/6″ - 4″ | Custom Sizes
Stud Bolt Length3 mm - 200 mm | Custom Sizes
DimensionsDIN 931, 933, 934, 7991, 976, 125, ASME B18.2.1, B18.3
Threads availableUNF, BSW, BSF, METRIC, UNC, or as required
Threads ConfigurationASME B1.1 2A/3A – 2B/3B Inch Unified Threads and B1.13M 6h-6G Metric Coarse Threads
FormHex, Threading, Square, Round as per Gauge Etc.
HeadHex, Square, Round, Hex flange, Flat, T-head & Triangular etc.
Neck typeHex, Square, Triangular, Oval & Knurled etc.
Surface TreatmentPassivation /plain
Others FactorOEM, ODM, ±0.03MM tolerance
Manufacturing ProcessWire Drawing, Cold Heading, Insert tapping, Heat Treatment, Surface Plating, Inspection, Packing.
PackingIN BULK: carton, pallet, Small Boxes or customer request
Surface CoatingBlack Oxide, Cadmium, Galvanized, Teflon, Xylan, Zinc, Others Upon Request
Test CertificateAs per EN 10204 / 3.1 Manufacturer Test Certificate, PED 97/23/EC Certified, Merkblatt AD 2000 W2 Certified
CertificationDual Certified As per ASTM & ASME Codes
Delivery timeRegular product : 7-15 days, Custom product : 2-4 weeks
Place of OriginIndia

Equivalent Grades Stainless Steel SMO 254 Stud Bolt

StandardUNSWerkstoff Nr.ENSSAFNOR
254 SMOS312541.4547X1CrNiMoCuN20-18-72378Z1 CNDU 20.18.06AZ*

Chemical Composition Stainless Steel SMO 254 Stud Bolt

GradeNiCMoMnSiFeCuSPCr
SMO 25417.5 – 18.50.02 max6 – 6.51 max0.8 max–0.5 – 10.01 max0.03 max19.5 – 20.5

Mechanical Properties Stainless Steel SMO 254 Stud Bolt

DensityMelting PointYield Strength (0.2%Offset)Tensile StrengthElongation
8.0 g/cm31320-1390 ℃30065035 %

Dimensions Of Stainless Steel SMO 254 Stud Bolt

Stainless Steel SMO 254 Stud Bolts Dimensions Chart :

Continuous Thread Studs
Tap End Studs (1.5D Engagement)
Clamping Type Studs
Length Tolerances — LT for Continuous Thread and Clamping Type Studs, and L for Tap End Studs
Double End Studs
stud Dimensions
All dimensions are in mm unless mentioned otherwise
Nominal Size
Diameter, D
inch		Tap End Full
Thread Length,
BM		Umax = 2PMinimum Nut End
Full Thread Length,
Bmin
NominalMin.Max.UNC & NC-5
Thread		UNF Thread8UN ThreadL ≤ 1010 < L ≤ 16L > 16
1/40.3750.3500.4000.1000.071...0.7501.0001.500
5/160.4690.4400.4980.1110.083--0.8751.1251.625
3/80.5630.5320.5940.1250.083--1.0001.2501.750
7/160.6560.6200.6920.1430.100--1.1251.3751.875
1/20.7500.7080.7920.1540.100--1.2501.5002.000
9/160.8440.8020.8960.1670.111--1.3751.6252.125
5/80.9380.8920.9830.1820.111--1.5001.7502.250
3/41.1.251.0751.1750.2000.125--1.7502.0002.500
7/81.3131.2581.3680.2220.143--2.0002.2502.750
11.5001.4381.5620.2500.167--2.2502.5003.000
1 1/81.6881.6251.7500.2860.1670.2502.5002.7503.250
1 1/41.8751.8131.9380.2860.1670.2502.7503.0003.500
1 3/82.0632.0002.1250.3330.1670.2503.0003.2503.750
1 1/22.2502.1882.3130.3330.1670.2503.2503.5004.000
1 5/82.4382.3752.500----0.2503.5003.7504.250
1 3/42.6252.5632.6880.400--0.2503.7504.0004.500
1 7/82.8132.7502.875----0.2504.0004.2504.750
23.0002.9253.0750.444--0.2504.2504.5005.000
2 1/43.3753.3003.4500.444--0.2504.7505.0005.500
2 1/23.7503.6753.8250.500--0.2505.2505.5006.000
2 3/44.1254.0504.2000.500--0.2505.7506.0006.500
34.5004.4254.5750.500--0.250--6.5007.000
3 1/44.8754.7754.9750.500--0.250--7.0007.500
3 1/25.2505.1505.3500.500--0.250--7.5008.000
3 3/45.6255.5255.7250.500--0.250--8.0008.500
46.0005.9006.1000.500--0.250--8.5009.000

Different Types Of Stainless Steel SMO 254 Stud Bolt

Different Types Of Stud Bolts:

Full Threaded Stud Bolt
ASTM A193 SS SMO 254 Full Threaded Stud Bolt
Bonding Stud Bolt Flange Stud Bolts
SMO 254 Bonding Stud Bolt / Flange Stud Bolts
Double End Stud Bolts with Reduced Shank
SMO 254 Double End Stud Bolts with Reduced Shank
Dowel Screw type Stud Bolt
SMO 254 Dowel Screw type Stud Bolt
Half Threaded Stud Bolt
DIN 1.4547 Half Threaded Stud Bolt
tap end stud bolts
UNS S31254 Tap End Stud Bolt
Double End Stud Bolt
SMO 254 Double End Stud Bolt
Clinch Stud Bolt
SMO 254 Clinch Stud Bolt
Weld Stud Bolt
SMO 254 Weld Stud Bolt

Application of Stainless Steel SMO 254 Stud Bolt

Testing of Stainless Steel SMO 254 Stud Bolt

Packing Of Stainless Steel SMO 254 Stud Bolt

Destination Of Stainless Steel SMO 254 Stud Bolt
