Takecoat-1000 Fasteners

Takecoat® 1000 fasteners, Takecoat 1000 Coated bolt , Takecoat 1000 threaded rod, Takecoat 1000 stud bolt, Takecoat 1000 nut, washer.

About Takecoat-1000 Fasteners

Takecoat 1000 fasteners manufacturer, Takecoat 1000 Coated bolt supplier , Takecoat 1000 threaded rod stockist, Takecoat 1000 stud bolt dealer, Takecoat 1000 nut, washer supplier.

Types Of Takecoat-1000 Fasteners

Takecoat Bolt

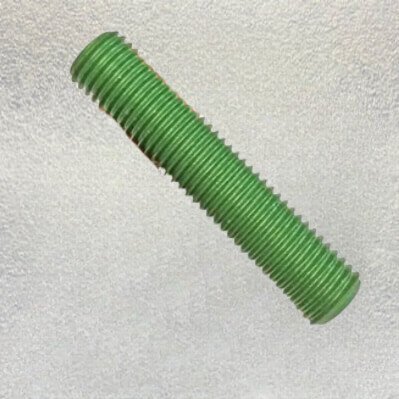

Takecoat Studs Bolt

Takecoat Nut

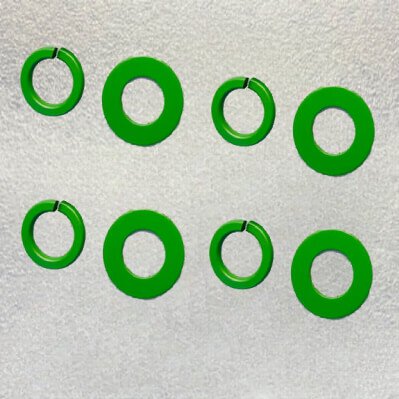

Takecoat Washer

Takecoat-1000 Fasteners Specification

Standard	DIN, ISO ,JIS ,GB, IS, BS, ASTM and all International Standards
Size	M3 – M100 \| 3/6″ – 4″ \| Custom Sizes
Fasteners Length	3 mm – 200 mm \| Custom Sizes
Nuts Size	M3 – M56 \| 3/6″ to 2″ \| Custom Sizes
Washers Size	M3 – M56 \| 3/6″ to 2″ \| Custom Sizes
Dimensions	DIN 931, 933, 934, 7991, 976, 125, ASME B18.2.1, B18.3
Threads available	UNF, BSW, BSF, METRIC, UNC, or as required
Threads Configuration	ASME B1.1 2A/3A – 2B/3B Inch Unified Threads and B1.13M 6h-6G Metric Coarse Threads
Form	Hex, Threading, Square, Round as per Gauge Etc.
Head	Hex, Square, Round, Hex flange, Flat, T-head & Triangular etc.
Neck type	Hex, Square, Triangular, Oval & Knurled etc.
Others Factor	OEM, ODM, ±0.03MM tolerance
Packing	IN BULK: carton, pallet, Small Boxes or customer request
Surface Coating	TAKECOAT® – 1000
Test Certificate	As per EN 10204 / 3.1 Manufacturer Test Certificate, PED 97/23/EC Certified, Merkblatt AD 2000 W2 Certified
Certification	Dual Certified As per ASTM & ASME Codes
Delivery time	Regular product : 7-15 days, Custom product : 2-4 weeks
Place of Origin	India

Dimensions Of Takecoat-1000 Fasteners

Takecoat Bolts Dimensions Chart :

Other Bolt & Screw Dimensions

Hex Cap Screws

Lobed Head Screws

Square Head Bolts

Hex Bolts

Heavy Hex Screw

Square Lag Screws

Heavy Hex Bolts

Hex Flange Screws

Hex Lag Screws

All dimensions are in mm unless mentioned otherwise

Nominal Size or Basic Product Diameter		Full-Size Body Diameter, E		Width Across Flats, F			Width Across Corners, G		Head Height, H Basic			Radius of Fillet, R		Nominal Thread Length for Bolt Lengths, LT
inch	mm	Max	Min	Basic inch	Max	Min	Max	Min	Basic inch	Max	Min	Max	Min	6 in. and Shoter	Over 6 in.
1⁄4	0.25	0.26	0.237	7⁄16	0.438	0.425	0.505	0.484	11⁄64	0.188	0.15	0.03	0.01	0.75	1
5⁄16	0.3125	0.324	0.298	1⁄2	0.5	0.484	0.577	0.552	7⁄32	0.235	0.195	0.03	0.01	0.875	1.125
3⁄8	0.375	0.388	0.36	9⁄16	0.562	0.544	0.65	0.62	1⁄4	0.268	0.226	0.03	0.01	1	1.25
7⁄16	0.4375	0.452	0.421	5⁄8	0.625	0.603	0.722	0.687	19⁄64	0.316	0.272	0.03	0.01	1.125	1.375
1⁄2	0.5	0.515	0.482	3⁄4	0.75	0.725	0.866	0.826	11⁄32	0.364	0.302	0.03	0.01	1.25	1.5
5⁄8	0.625	0.642	0.605	15⁄16	0.938	0.906	1.083	1.033	27⁄64	0.444	0.378	0.06	0.02	1.5	1.75
3⁄4	0.75	0.768	0.729	11⁄8	1.125	1.088	1.299	1.24	1⁄2	0.524	0.455	0.06	0.02	1.75	2
7⁄8	0.875	0.895	0.852	1 5⁄16	1.312	1.269	1.516	1.447	37⁄64	0.604	0.531	0.06	0.02	2	2.25
1	1	1.022	0.976	1 1⁄2	1.5	1.45	1.732	1.653	43⁄64	0.7	0.591	0.09	0.03	2.25	2.5
1 1⁄8	1.125	1.149	1.098	1 11⁄16	1.688	1.631	1.949	1.859	3⁄4	0.78	0.658	0.09	0.03	2.5	2.75
1 1⁄4	1.25	1.277	1.223	1 7⁄8	1.875	1.812	2.165	2.066	27⁄32	0.876	0.749	0.09	0.03	2.75	3
1 3⁄8	1.375	1.404	1.345	2 1⁄16	2.062	1.994	2.382	2.273	29⁄32	0.94	0.81	0.09	0.03	3	3.25
1 1⁄2	1.5	1.531	1.47	2 1⁄4	2.25	2.175	2.598	2.48	1	1.036	0.902	0.09	0.03	3.25	3.5
1 5⁄8	1.625	1.658	1.591	2 7⁄16	2.438	2.356	2.815	2.616	1 3⁄32	1.116	0.978	0.09	0.03	3.5	3.75
1 3⁄4	1.75	1.785	1.716	2 5⁄8	2.625	2.538	3.031	2.893	1 5⁄32	1.196	1.054	0.12	0.04	3.75	4
1 7⁄8	1.875	1.912	1.839	2 13⁄16	2.812	2.719	3.248	3.099	1 1⁄4	1.276	1.13	0.12	0.04	4	4.25
2	2	2.039	1.964	3	3	2.9	3.464	3.306	1 11⁄32	1.388	1.175	0.12	0.04	4.25	4.5
2 1⁄4	2.25	2.305	2.214	3 3⁄8	3.375	3.262	3.897	3.719	1 1⁄2	1.548	1.327	0.19	0.06	4.75	5
2 1⁄2	2.5	2.559	2.461	3 3⁄4	3.75	3.625	4.33	4.133	1 21⁄32	1.708	1.479	0.19	0.06	5.25	5.5
2 3⁄4	2.75	2.827	2.711	4 1⁄8	4.125	3.988	4.763	4.546	1 13⁄16	1.869	1.632	0.19	0.06	5.75	6
3	3	3.081	2.961	4 1⁄2	4.5	4.35	5.196	4.959	2	2.06	1.815	0.19	0.06	6.25	6.5
3 1⁄4	3.25	3.335	3.21	4 7⁄8	4.875	4.712	5.629	5.372	2 3⁄16	2.251	1.936	0.19	0.06	6.75	7
3 1⁄2	3.5	3.589	3.461	5 1⁄4	5.25	5.075	6.062	5.786	2 5⁄16	2.38	2.057	0.19	0.06	7.25	7.5
3 3⁄4	3.75	3.858	3.726	5 5⁄8	5.625	5.437	6.495	6.198	2 1⁄2	2.572	2.241	0.19	0.06	7.75	8
4	4	4.111	3.975	6	6	5.8	6.928	6.612	2 11⁄16	2.764	2.424	0.19	0.06	8.25	8.5

Takecoat Stud Bolts Dimensions Chart :

Other Studs Dimensions

Continuous Thread Studs

Tap End Studs (1.5D Engagement)

Clamping Type Studs

Length Tolerances — LT for Continuous Thread and Clamping Type Studs, and L for Tap End Studs

Double End Studs

All dimensions are in mm unless mentioned otherwise

Nominal Size Diameter, D inch	Tap End Full Thread Length, BM			Umax = 2P			Minimum Nut End Full Thread Length, Bmin
Nominal Size Diameter, D inch	Nominal	Min.	Max.	UNC & NC-5 Thread	UNF Thread	8UN Thread	L ≤ 10	10 < L ≤ 16	L > 16
1/4	0.375	0.350	0.400	0.100	0.071	...	0.750	1.000	1.500
5/16	0.469	0.440	0.498	0.111	0.083	--	0.875	1.125	1.625
3/8	0.563	0.532	0.594	0.125	0.083	--	1.000	1.250	1.750
7/16	0.656	0.620	0.692	0.143	0.100	--	1.125	1.375	1.875
1/2	0.750	0.708	0.792	0.154	0.100	--	1.250	1.500	2.000
9/16	0.844	0.802	0.896	0.167	0.111	--	1.375	1.625	2.125
5/8	0.938	0.892	0.983	0.182	0.111	--	1.500	1.750	2.250
3/4	1.1.25	1.075	1.175	0.200	0.125	--	1.750	2.000	2.500
7/8	1.313	1.258	1.368	0.222	0.143	--	2.000	2.250	2.750
1	1.500	1.438	1.562	0.250	0.167	--	2.250	2.500	3.000
1 1/8	1.688	1.625	1.750	0.286	0.167	0.250	2.500	2.750	3.250
1 1/4	1.875	1.813	1.938	0.286	0.167	0.250	2.750	3.000	3.500
1 3/8	2.063	2.000	2.125	0.333	0.167	0.250	3.000	3.250	3.750
1 1/2	2.250	2.188	2.313	0.333	0.167	0.250	3.250	3.500	4.000
1 5/8	2.438	2.375	2.500	--	--	0.250	3.500	3.750	4.250
1 3/4	2.625	2.563	2.688	0.400	--	0.250	3.750	4.000	4.500
1 7/8	2.813	2.750	2.875	--	--	0.250	4.000	4.250	4.750
2	3.000	2.925	3.075	0.444	--	0.250	4.250	4.500	5.000
2 1/4	3.375	3.300	3.450	0.444	--	0.250	4.750	5.000	5.500
2 1/2	3.750	3.675	3.825	0.500	--	0.250	5.250	5.500	6.000
2 3/4	4.125	4.050	4.200	0.500	--	0.250	5.750	6.000	6.500
3	4.500	4.425	4.575	0.500	--	0.250	--	6.500	7.000
3 1/4	4.875	4.775	4.975	0.500	--	0.250	--	7.000	7.500
3 1/2	5.250	5.150	5.350	0.500	--	0.250	--	7.500	8.000
3 3/4	5.625	5.525	5.725	0.500	--	0.250	--	8.000	8.500
4	6.000	5.900	6.100	0.500	--	0.250	--	8.500	9.000

Takecoat Nuts Dimensions :

Other Nut Dimensions

Square And Hex Machine Screw Nuts

Hex Thick Nuts

Hex Thick Slotted Nuts

Heavy Hex Nuts and Heavy Hex Jam Nuts

Heavy Square Nuts

Hex Flat Nuts And Hex Flat Jam Nuts

Hex Slotted Nuts

Heavy Hex Slotted Nuts

Hex Flange Nuts and Large Hex Flange Nuts

Hex Nuts And Hex Jam Nuts

Square Nuts

Hex Coupling Nuts

Heavy Hex Flat Nuts and Heavy Hex Flat Jam Nuts

All dimensions are in mm unless mentioned otherwise

Nominal Size inch	Basic Major Diameter of Thread	Width Across Flats, F			Width Across Corners, G		Thickness Heavy Hex Nuts, H			Thickness Heavy Hex Jam Nuts, H1			Maximum Runout of Bearing Surface to Thread Axis, FIM
													Heavy HEX NUTS		Heavy Hex Jam Nuts
													Specified Proof load		Heavy Hex Jam Nuts
		Basic inch	Min.	Max	Min.	Max	Basic inch	Min.	Max	Basic inch	Min.	Max	Up to 150,000 psi	150,000 psi and Greater	All Strength Levels
1/4	0.2500	1/2	0.488	0.500	0.556	0.577	15/64	0.218	0.250	11/64	0.156	0.188	0.017	0.011	0.017
5/16	0.3125	9/16	0.546	0.562	0.622	0.650	19/64	0.280	0.314	13/64	0.186	0.220	0.020	0.012	0.020
3/8	0.3750	11/16	0.669	0.688	0.763	0.794	23/64	0.341	0.377	15/64	0.216	0.252	0.021	0.014	0.021
7/16	0.4375	3/4	0.728	0.750	0.830	0.866	27/64	0.403	0.441	17/64	0.247	0.285	0.022	0.015	0.022
1/2	0.5000	7/8	0.850	0.875	0.969	1.010	31/64	0.464	0.504	19/64	0.277	0.317	0.023	0.016	0.023
9/16	0.5625	15/16	0.909	0.938	1.037	1.083	35/64	0.526	0.568	21/64	0.307	0.349	0.024	0.017	0.024
5/8	0.6250	1 1/16	1.031	1.062	1.175	1.227	39/64	0.587	0.631	23/64	0.337	0.381	0.025	0.018	0.025
3/4	0.7500	1 1/4	1.212	1.250	1.382	1.443	47/64	0.710	0.758	27/64	0.398	0.446	0.027	0.020	0.027
7/8	0.8750	1 7/16	1.394	1.438	1.589	1.660	55/64	0.833	0.885	31/64	0.458	0.510	0.029	0.022	0.029
1	1.0000	1 5/8	1.575	1.625	1.796	1.876	63/64	0.956	1.012	35/64	0.519	0.575	0.031	0.024	0.031
1 1/8	1.1250	1 13/16	1.756	1.812	2.002	2.093	1 7/64	1.079	1.139	39/64	0.579	0.639	0.033	0.027	0.033
1 1/4	1.2500	2	1.938	2.000	2.209	2.309	1 7/32	1.187	1.251	23/32	0.687	0.751	0.035	0.030	0.035
1 3/8	1.3750	2 3/16	2.119	2.188	2.416	2.526	1 11/32	1.310	1.378	25/32	0.747	0.815	0.038	0.033	0.038
1 1/2	1.5000	2 3/8	2.300	2.375	2.622	2.742	1 15/32	1.433	1.505	27/32	0.808	0.880	0.041	0.036	0.041
1 5/8	1.6250	2 9/16	2.481	2.562	2.828	2.959	1 19/32	1.556	1.632	29/32	0.868	0.944	0.044	0.038	0.044
1 3/4	1.7500	2 3/4	2.662	2.750	3.035	3.175	1 23/32	1.679	1.759	31/32	0.929	1.009	0.048	0.041	0.048
1 7/8	1.8750	2 15/16	2.844	2.938	3.242	3.392	1 27/32	1.802	1.886	1 1/32	0.989	1.073	0.051	0.044	0.051
2	2.0000	3 1/8	3.025	3.125	3.449	3.608	1 31/32	1.925	2.013	1 3/32	1.050	1.138	0.055	0.047	0.055
2 1/4	2.2500	3 1/2	3.388	3.500	3.862	4.041	2 13/64	2.155	2.251	1 13/64	1.155	1.251	0.061	0.052	0.061
2 1/2	2.5000	3 7/8	3.750	3.875	4.275	4.474	2 29/64	2.401	2.505	1 29/64	1.401	1.505	0.068	0.058	0.068
2 3/4	2.7500	4 1/4	4.112	4.250	4.688	4.907	2 45/64	2.647	2.759	1 37/64	1.522	1.634	0.074	0.064	0.074
3	3.0000	4 5/8	4.475	4.625	5.102	5.340	2 61/64	2.893	3.013	1 45/64	1.643	1.763	0.081	0.070	0.081
3 1/4	3.2500	5	4.838	5.000	5.515	5.774	3 3/16	3.124	3.252	1 13/16	1.748	1.876	0.087	0.075	0.087
3 1/2	3.5000	5 3/8	5.200	5.375	5.928	6.207	3 7/16	3.370	3.506	1 15/16	1.870	2.006	0.094	0.081	0.094
3 3/4	3.7500	5 3/4	5.562	5.750	6.341	6.640	3 11/16	3.616	3.760	2 1/16	1.990	2.134	0.100	0.087	0.100
4	4.0000	6 1/8	5.925	6.125	6.755	7.073	3 15/16	3.862	4.014	2 3/16	2.112	2.264	0.107	0.093	0.107

Takecoat 1000 Washer Dimensions Chart :

Other Washer Dimensions

Backup Rivet Washer

Bearing Washer

Ball Bearing Washer

All dimensions are in mm unless mentioned otherwise

Nominal Size								T					Clipped Width E, Min.
	I.D.			O.D.			Standard			Extra Thick
[Note (1)]		Max.	Min.		Max.	Min.		Max.	Min.		Max.	Min.	[Note (2)]
12		14.4	14		27	25.7		4.6	3.1		10	8	10.5
16		18.4	18		34	32.4		4.6	3.1		10	8	14
20		22.5	22		42	40.4		4.6	3.1		10	8	17.5
22		24.5	24		44	42.4		4.6	3.4		10	8	19.2
24		26.5	26		50	48.4		4.6	3.4		10	8	21
27		30.5	30		56	S4.1		4.6	3.4		10	8	23.6
30		33.6	33		60	58.1		4.6	3.4		10	8	26.2
36		39.6	39		72	70.1		4.6	3.4		10	8	31.S
42		45.6	45		84	81.8		7.2	4.6		10	8	36.7
48		52.7	52		95	92.8		7.2	4.6		10	8	42
56		62.7	62		107	104.8		8.7	6.1		10	8	49
64		70.7	70		118	115.8		8.7	6.1		10	8	56
72		78.7	78		130	127.5		8.7	6.1		10	8	63
80		86.9	86		142	139.5		8.7	6.1		10	8	70
90		96.9	96		159	156.5		8.7	6.1		10	8	78.7
100		107.9	107		176	173.5		8.7	6.1		10	8	87.5

Other Type of fasteners available at fas10

Different Types Of Bolts:

Different Types Of Nuts:

Different Types Of Washers:

Different Types Of Screw:

Application of Takecoat-1000 Fasteners

Construction Bridges Petrochemical Industry Ship Building Engineering General Structural Purposes

Testing of Takecoat-1000 Fasteners

Chemical Analysis – Spectro Analysis Intergranular Corrosion (IGC) Test Pitting Resistance Test Hardness Test Dye Penetrant Test (DP Test) Micro Test Flaring Test

STAINLESS STEEL FASTENERS

FASTENERS
